Description
ABK machinery has a variety serise of productions as ellipsoidal heads,flat-plate heads,cone heads,spherical heads,spherical cap-shaped heads,U-rings,expansion joint,diameter from 42mm to 13,000mm,covers all kinds of carbon steels,alloy steels,stainless steels.ABK takes lead in eccentric cone head,Bow-shaped bottom head,panes spherical head,titanium alloy steel head,forming technology of large thin-walled stainless steel panes and special alloy steels.

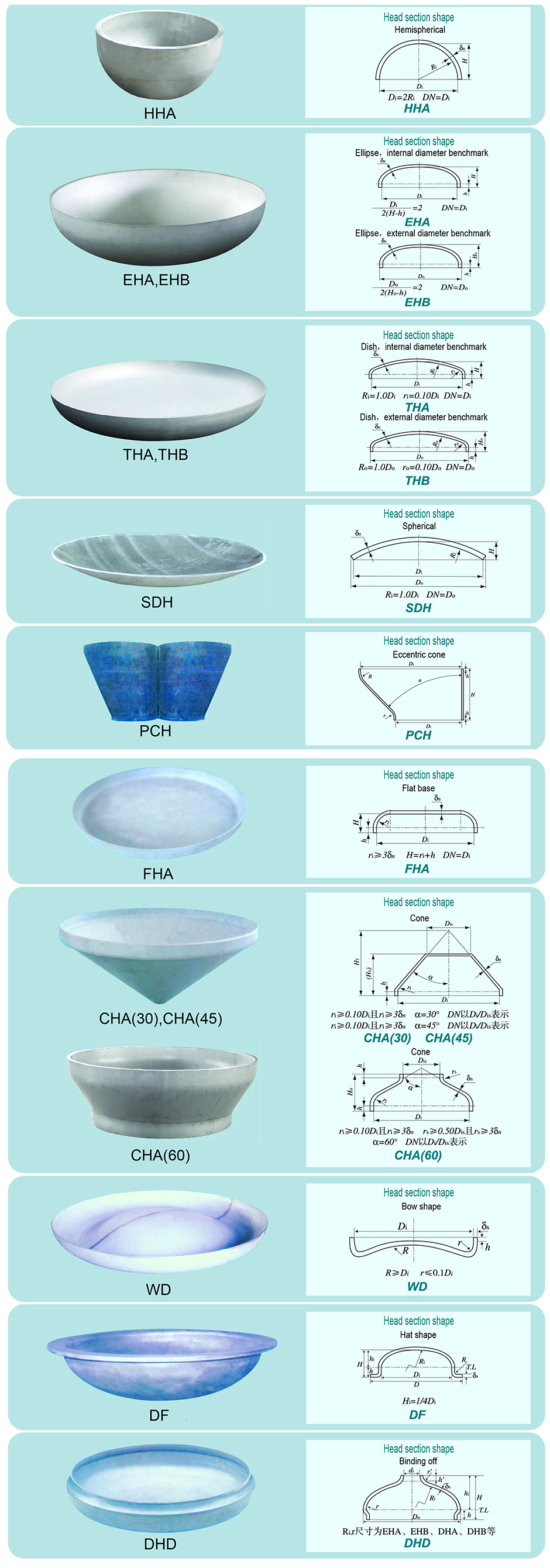

Product Introduction

Production process

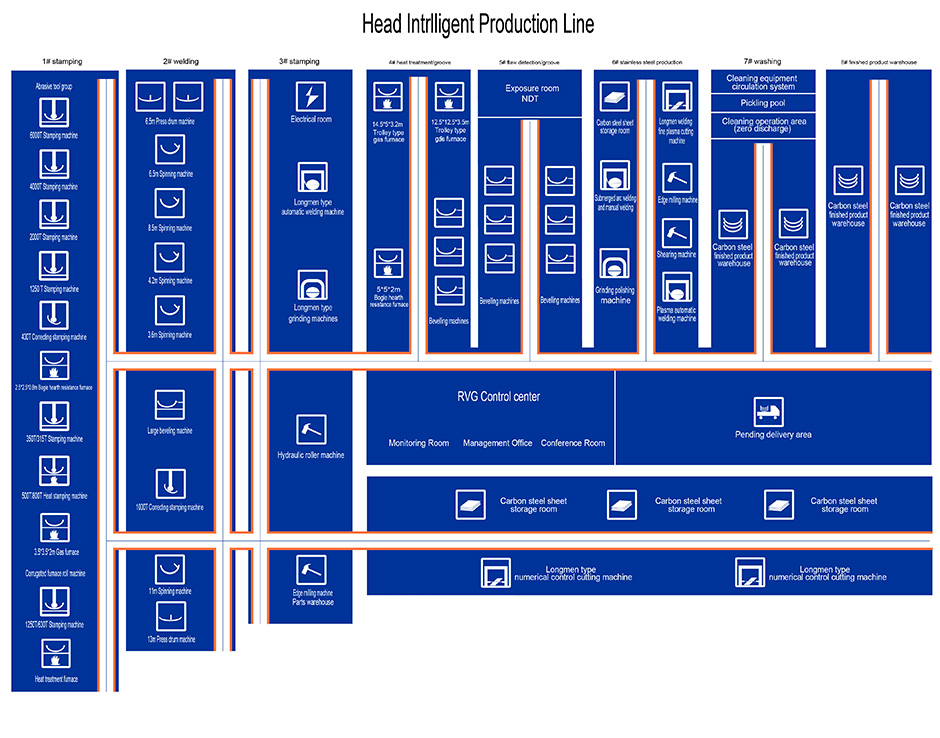

Head Intrlligent production Line

Product Date
Blanking size Type Processing Method Material Unit
EHA·THA·FHA Stamping carbon steel,low alloy steel,stainless steel mm
Stamping
Specification
2--6 8--12 14--20
EHA THA FHA EHA THA FHA EHA THA FHA
200 300 300 310 320 320 310 330 330 310
250 350 330 360 370 350 380 380 360 380
300 430 400 430 440 420 450 460 440 450
350 490 470 480 510 480 480 530 500 480
400 560 520 520 580 540 540 600 560 560
450 610 590 570 630 610 590 650 630 610
500 690 660 640 700 680 660 720 700 700
550 750 700 690 760 720 700 770 740 740
600 790 760 750 810 780 770 830 800 810
650 850 830 780 870 850 800 890 870 840
700 930 890 900 950 910 910 970 930 930
750 980 950 950 990 970 960 1020 1000 980
800 1040 1010 1000 1060 1030 1010 1090 1050 1020
850 1100 1070 1050 1120 1090 1060 1150 1110 1080
900 1180 1130 1100 1190 1150 1110 1210 1170 1140
950 1230 1190 1150 1240 1210 1160 1270 1230 1180
1000 1280 1230 1200 1290 1250 1200 1320 1280 1240
1050 1360 1300 1250 1380 1320 1260 1410 1350 1280
1100 1410 1360 1320 1430 1380 1330 1450 1400 1350
1150 1470 1410 1360 1490 1430 1370 1520 1450 1390
1200 1520 1470 1420 1540 1490 1440 1570 1510 1460
1250 1580 1530 1460 1600 1550 1480 1630 1580 1510
1300 1660 1590 1520 1680 1610 1540 1700 1640 1570
1350 1700 1650 1570 1720 1670 1590 1750 1700 1620
1400 1770 1700 1620 1790 1720 1640 1810 1750 1670
1450 1820 1760 1670 1840 1780 1690 1870 1800 1720
1500 1920 1820 1720 1940 1840 1740 1970 1870 1770
1550 1960 1880 1770 1970 1900 1790 2000 1930 1820
1600 2020 1900 1820 2030 1900 1840 2060 1930 1860
1650 2070 1990 1880 2080 1990 1900 2110 2010 1940
1700 2160 2020 1920 2180 2040 1940 2200 2070 1960
1750 2200 2100 1970 2220 2120 1990 2260 2160 2010
1800 2280 2140 2020 2300 2140 2040 2330 2170 2070
1850 2300 2210 2070 2320 2230 2090 2360 2260 2110
1900 2400 2270 2120 2420 2300 2140 2440 2340 2160
1950 2400 2330 2170 2520 2350 2190 2460 2390 2220
2000 2520 2380 2230 2540 2400 2250 2570 2430 2270
2100 2640 2520 2330 2660 2540 2350 2690 2560 2370
2200 2760 2630 2430 2780 2650 2450 2800 2680 2470
2300 2900 2760 2530 2920 2780 2550 2960 2800 2570
2400 3020 2870 2630 3040 2890 2650 3060 2910 2670
2500 3130 2990 2730 3160 3010 2750 3180 3030 2780
2600 3260 3100 2840 3280 3120 2860 3300 3140 2890

Processing Method Material Unit
Spinning carbon steel,low alloy steel,stainless steel mm
16--25 25--
EHA THA EHA THA
3280 3170 3300 3180
3400 3280 3430 3300
3520 3400 3540 3420
3620 3520 3640 3540
3740 3640 3760 3660
3840 3760 3860 3780
3970 3870 3990 3890
4080 3980 4100 4000
4200 4090 4220 4110
4310 4200 4330 4220
4420 4310 4440 4340
4540 4430 4560 4450
4660 4540 4680 4560
4770 4650 4790 4670
4890 4770 4910 4790
5000 4880 5020 4900
5120 4990 5140 5010
5230 5100 5250 5120
5350 5210 5370 5230
5460 5330 5480 5350
5580 5440 5600 5460
5690 5550 5710 5570
5810 5660 5830 5680
5920 5770 5940 5790
6040 5890 6060 5910
6150 6000 6170 6020
6270 6110 6290 6130
6380 6220 6400 6240
6500 6330 6520 6350
6610 6440 6630 6460
6730 6560 6750 6580
6840 6670 6860 6690
6960 6780 6980 6800
7070 6890 7090 6910
7190 7010 7210 7030
7300 7120 7330 7150
7420 7230 7450 7260
7530 7350 7560 7380
7640 7450 7670 74770
7760 7570 7790 7600
